Stainless Steel Etching Sheet

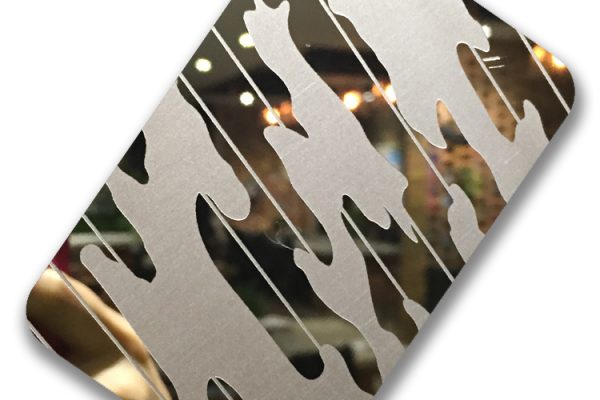

Stainless steel etched plate

Various patterns are etched on the surface of stainless steel through chemical methods.

Stainless steel etching plates use chemical methods to etch various patterns on the surface of stainless steel. Using 8K mirror plate, brushed plate, sandblasting plate as the base plate, after etching treatment, the surface of the object is further processed. The stainless steel etching plate can be used for various complex processes such as partial texture, drawing, gold inlay, and partial titanium gold. , the stainless steel etched plate achieves the effect of alternating light and dark patterns and brilliant colors.

The principle of etching or corrosion of stainless steel: the strong oxidizing property of ferric chloride is used to corrode the surface of stainless steel, and the trivalent iron element becomes a relatively stable divalent iron element; the specific production process is: first apply anti-corrosion coating on the surface of stainless steel Layer, protect the part that needs to be protected, put it on the assembly line sprayed with ferric chloride, wash off the anti-corrosion layer after the corrosion is completed, and form a pattern;

The process flow is:

Stainless steel plate → oil removal → washing → drying → screen printing → drying → water immersion → etching pattern leaves (pieces) washing → ink removal → washing → polishing → washing → coloring → washing leaves (pieces) hardening treatment → sealing treatment → Clean the leaves (pieces) and dry them → inspect → product.

General materials:

Stainless steel 8K mirror panel, stainless steel brushed plate (model: 80, 120, 180, 240, 320, 400, 600), stainless steel snowflake sand, ordinary sand, sandblasting, etching on various colored stainless steel plates.

Stainless steel specifications:

1000mm*2000mm, 1219mm*2438mm, 1219mm*3000mm, 1219mm*3048mm, 1219mm*4000mm. The conventional plate making model is 1219mm*2438mm

Stainless steel material:

304, 316, 430, other materials do not guarantee quality requirements

WAYEN.M.IND has a 20,000 square meter warehouse in Guangdong, China. The annual inventory of stainless steel plates exceeds 50,000 tons. It has various shearing machines such as 1000mm, 1219mm, 1500mm and so on. Bingjie has various surface treatment equipment, which can process surfaces including NO.4, HL, 8K, 10K, POLISH, MIRROR, PVD, ECHING, EMBOSSED, BEAD BLAST, HOT TRANSFER-WOODED SERIES. It acts as an agent for large Chinese steel mills to produce stainless steel coils. . Partners include POSCO, TISCO, YONGJIN, QSINGSAN, HONGWANG, BAOSTEEL.ECT….

We have passed ISO9001 quality certification, CE, BIS, JIS. We have three departments: factory, trade and foreign export. More than 300 employees. After more than 10 years of accumulated export experience, we have 300 long-term cooperative customers in more than 50 countries around the world. The factory has rich experience in export production, from warehousing, quality inspection, production, re-quality inspection, packaging, loading and transportation . All processes are top quality. It is guaranteed that the stainless steel plates delivered to customers are perfect.

Q1.What are the main products of WAYEN.M.IND?

A1.WAYEN.M.IND’s main products include 201/304/316L/430/310S/2205 and other stainless steel coils and plates, with various styles of etching and embossing, and surface treatments will be customized.

Q2. How do you ensure the quality of your products?

A2. All products must undergo three inspections during the entire manufacturing process, including production, cutting and packaging.

Q3. What is your delivery time and supply capacity?

A3. The delivery time is usually within 15~20 working days, and we can supply about 15,000 tons per month.

Q4. What kind of equipment does your factory have?

A4. Our factory has advanced five-eight-roll rolling and cold rolling upper roll production equipment, as well as advanced processing and testing equipment, making our products higher quality and more efficient.

Q5. How do you handle after-sales services such as complaints and quality issues?

A5. We will have specific colleagues to track each order accordingly and provide professional after-sales service. If any claim occurs, we will assume responsibility and indemnify according to the contract. In order to better serve our customers, we will constantly track customer feedback on our products, this is what differentiates us from other suppliers. We are a customer care business.
